Unit 606 — Continental House · Acoustic Testing

Acoustic Test Pad Locations

Test pad placement diagram for HOA acoustic compliance testing

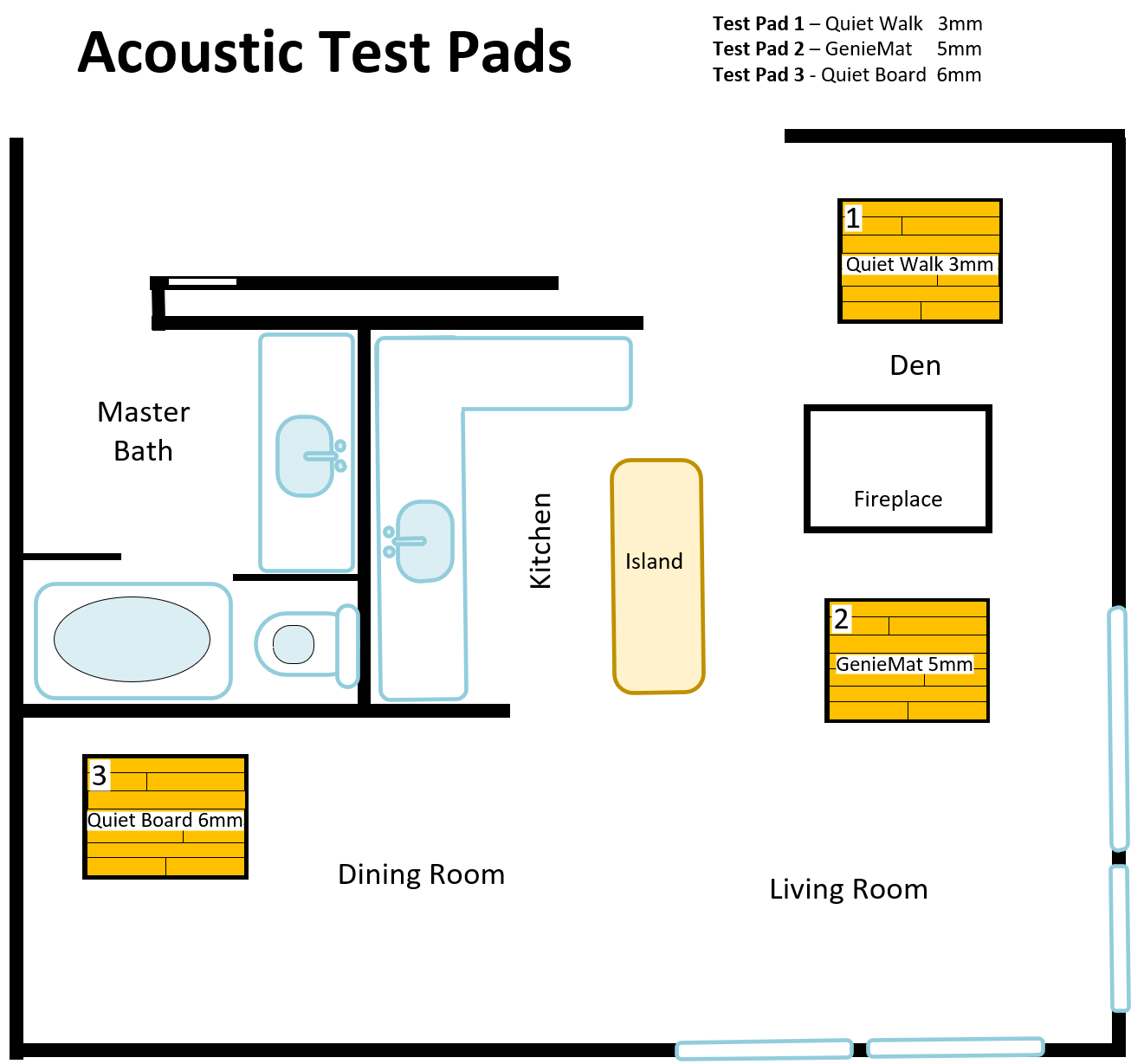

The diagram below shows the placement of three acoustic underlayment test pads installed in Unit 606 at Continental House. Each pad uses a different underlayment product — Quiet Walk 3mm, GenieMat 5mm, and Quiet Board 6mm — positioned in distinct areas of the unit so that HOA acoustic compliance testing can evaluate each product's impact isolation performance (IIC rating) under real-world conditions.

Acoustic test pad placement diagram

Tap the image to open the full-size version in a new tab.
Open original PNG →

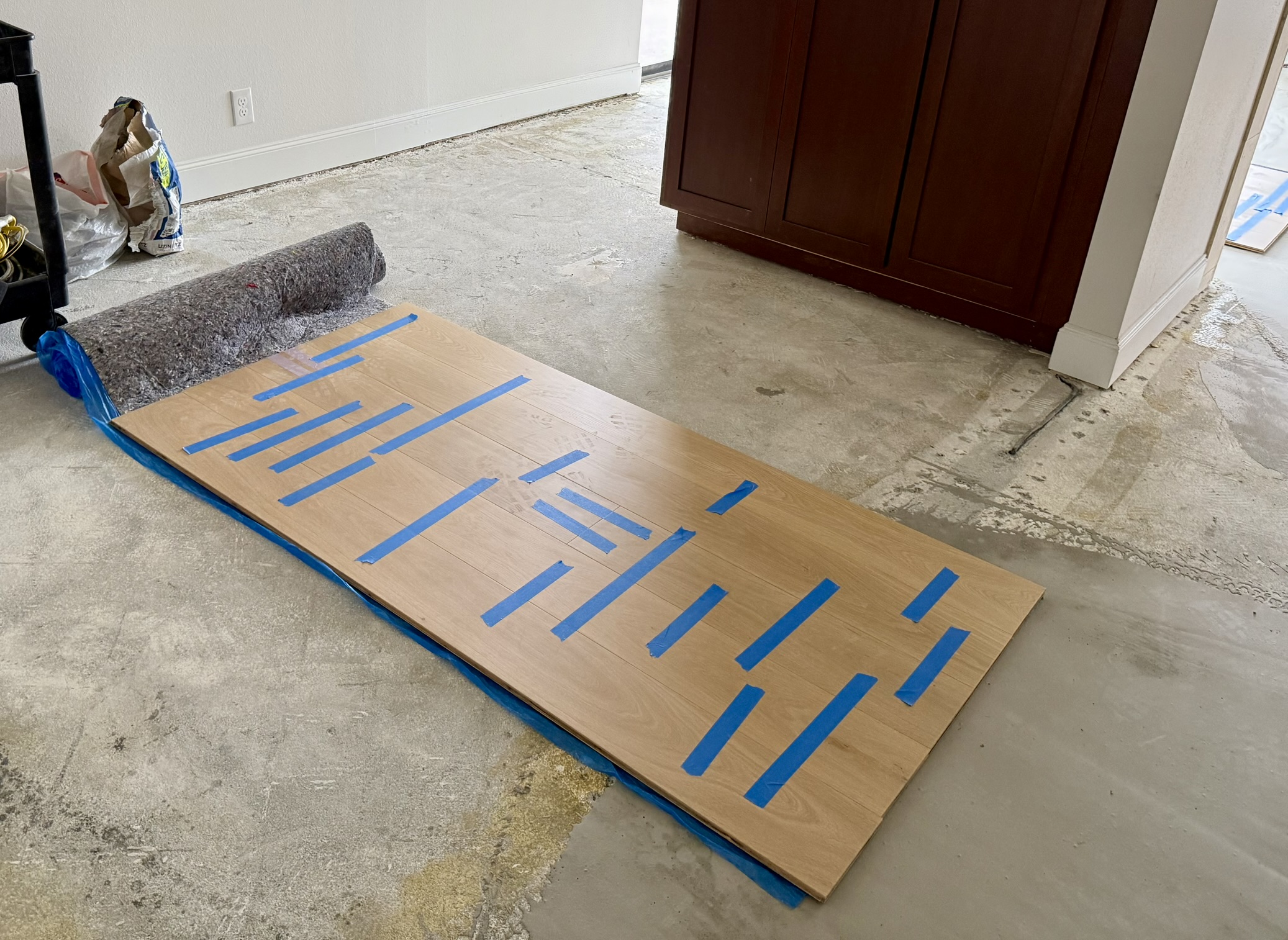

Test Pad 1 - Quiet Walk 3mm

Acoustic test pad installation photo

Tap the image to open the full-size version in a new tab.
Open original photo →

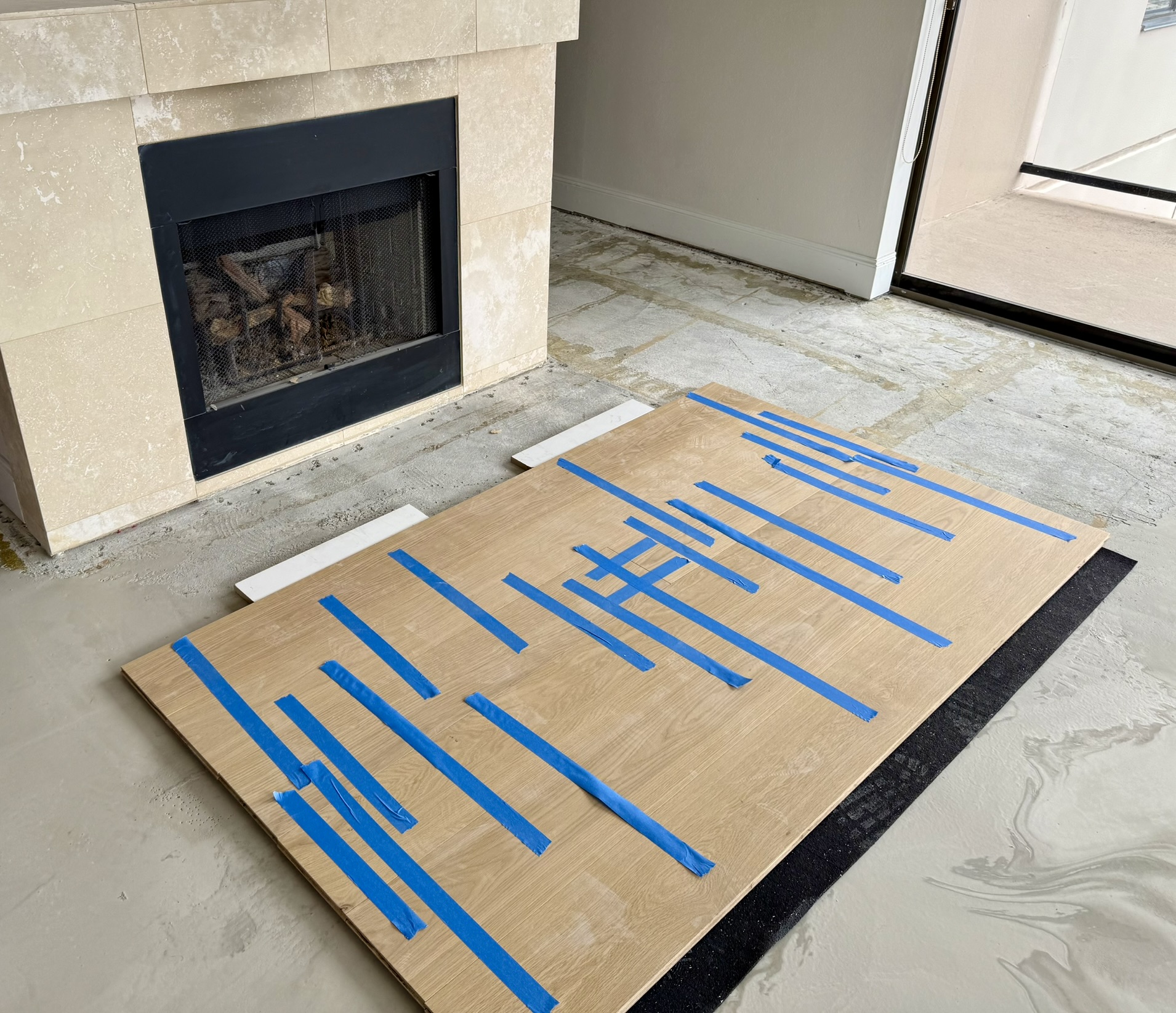

Test Pad 2 - GenieMat 5mm

Acoustic test pad 2 photo

Tap the image to open the full-size version in a new tab.
Open original photo →

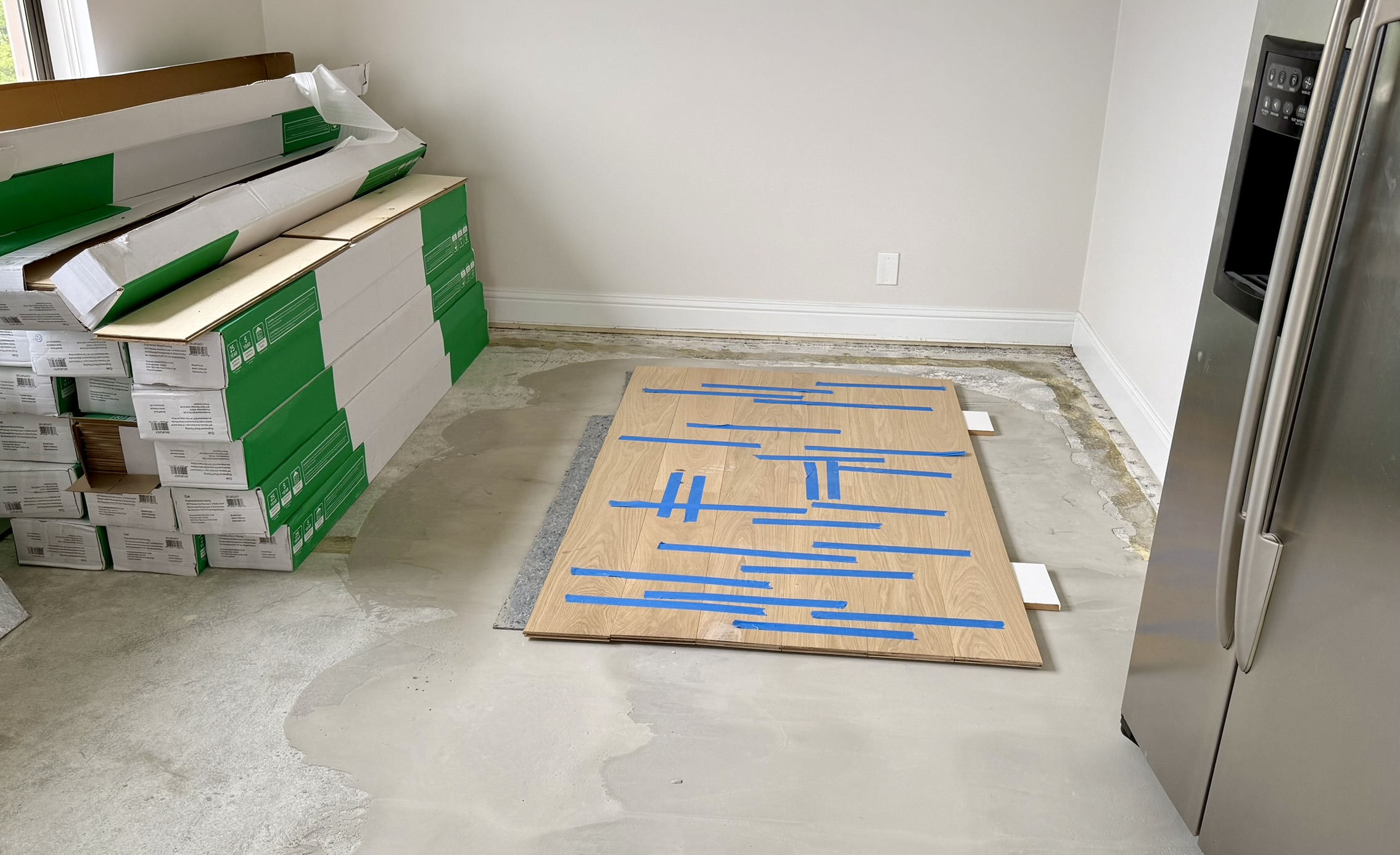

Test Pad 3 - Quiet Board 6mm

Acoustic test pad 3 photo

Tap the image to open the full-size version in a new tab.
Open original photo →
