CENSEO FIELD TEST REPORT
Continental House Condominium · Unit 606
Test #26035-01 · May 7, 2026 · Jeanette Hesedahl, PE
51
AIIC · Pretest / Mockup Result
HOA requires FIIC 62 (new installation) or FIIC 55 (replacement).
Flanking not fully evaluated — result is a minimum value.
Flanking not fully evaluated — result is a minimum value.
Test Details
| Conducted By | Jeanette Hesedahl, PE |
| Firm | CENSEO AV+Acoustics |
| Test Date | May 7, 2026 |
| Report Date | May 8, 2026 |
| Source Room | #606 Living (unfurnished) |
| Receiver Room | #506 Living/Dining/Kitchen |
| Mockup Area | 5′ × 5′ |
| Receiver Volume | 3,113 cu. ft. |
| Standard | ASTM E 1007-25 / E989-21 |
Test Assembly (top to bottom)
- Oak Engineered Wood · 5/8″ thick · floating installation
- Eclipse II Acoustical Underlayment · 0.070″ thick · closed cell EVA foam
- Concrete Structural Floor · Thickness unknown
- Suspended Gypsum Board Ceiling · Thickness and construction unknown
Underlayment — Eclipse II
| Manufacturer | Foam Products Corporation · Calhoun, Georgia |
| Item # | ECLII100 |
| IIC Rating (Lab) | 72 |
| STC Rating (Lab) | 66 |
| Thickness | 0.070″ |
| Coverage | 100 sq. ft. (43″ × 27.9′) |
| Material | Dense closed cell EVA foam rubber |
| Application | Floating only (not glue-down) |
| Subfloor | Concrete & wood |
| Warranty | Lifetime (flooring life) |
| Certification | GreenGuard Gold · UL 2818 |
- Excellent moisture protection
- Self-sealing lip and tape system for easy installation
- Mold and mildew resistant
- Compatible with radiant heat flooring systems
- Reduces floor noise via sound absorption
Normalized Impact Sound Pressure by Frequency
| Freq (Hz) | dB | Level |
|---|---|---|
| 100 | 60.5 | |
| 125 | 64.7 | |
| 160 | 69.0 | |
| 200 | 66.5 | |
| 250 | 65.0 | |
| 315 | 65.1 | |
| 400 | 63.6 | |
| 500 | 61.2 | |
| 630 | 58.6 | |
| 800 | 53.4 | |
| 1000 | 51.0 | |
| 1250 | 47.0 | |
| 1600 | 43.4 | |
| 2000 | 45.9 | |
| 2500 | 43.0 | |
| 3150 | 37.9 |
Darker bars (100–315 Hz) indicate the low-frequency range where thin foam underlayments perform weakest.
Note on Flanking
The CENSEO report states flanking transmission was not fully evaluated. The AIIC 51 result should be treated as a minimum value — actual performance may be higher once flanking paths are accounted for.
Test Setup — Photos

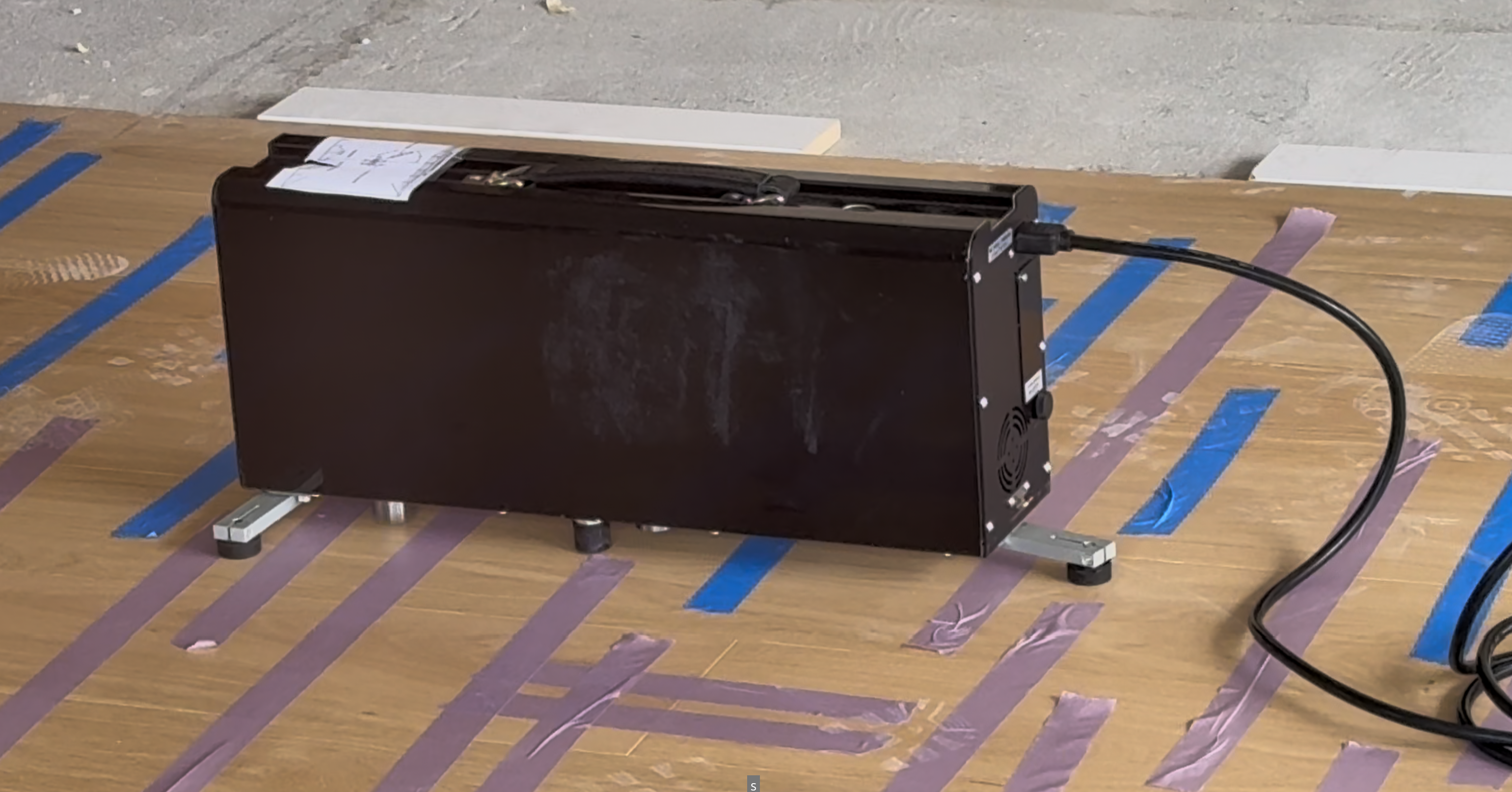

Close-up of the tapping machine on the flooring surface

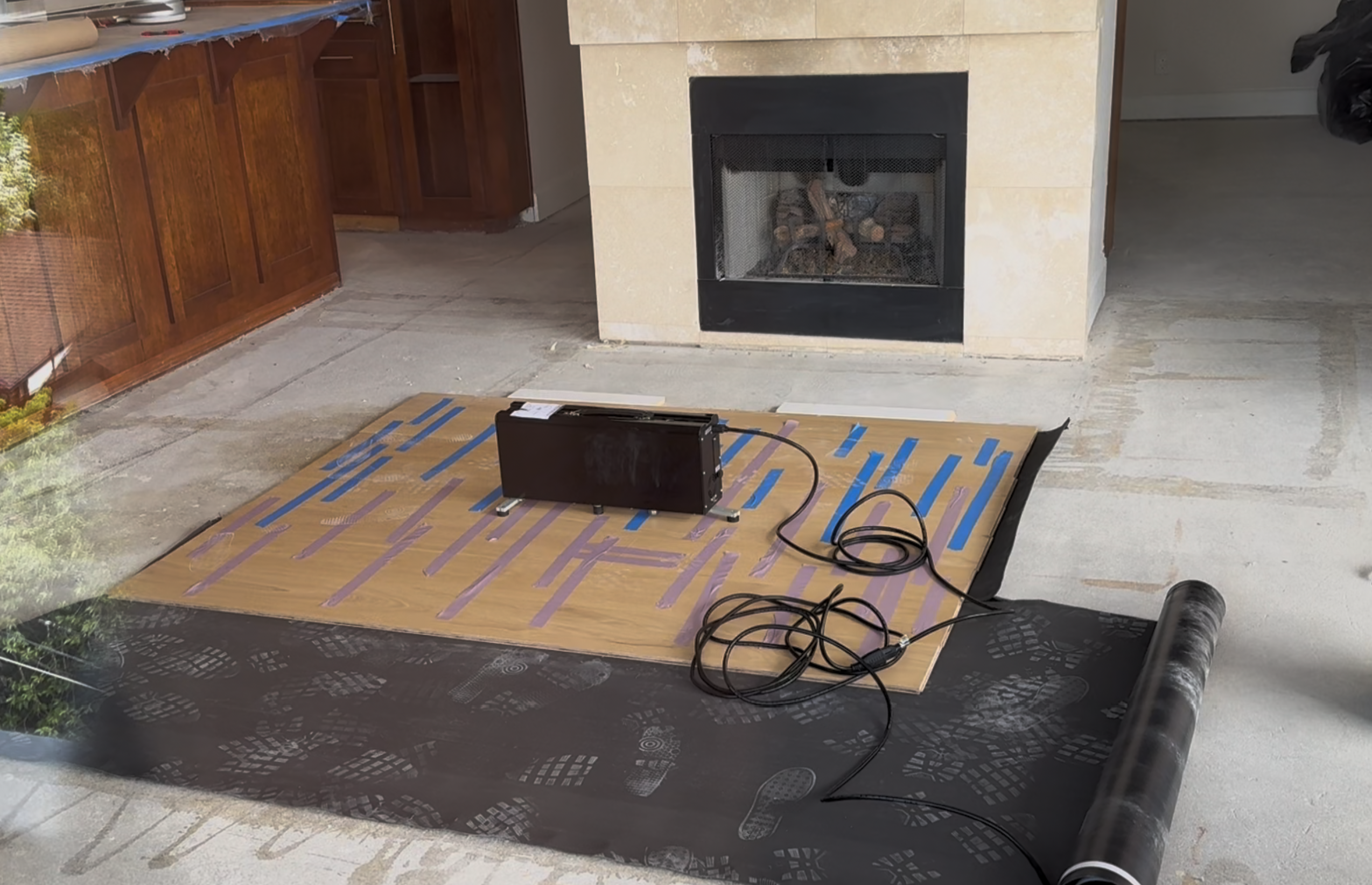

Complete 5′ × 5′ mockup assembly — overhead view
Underlayment — Product Labels

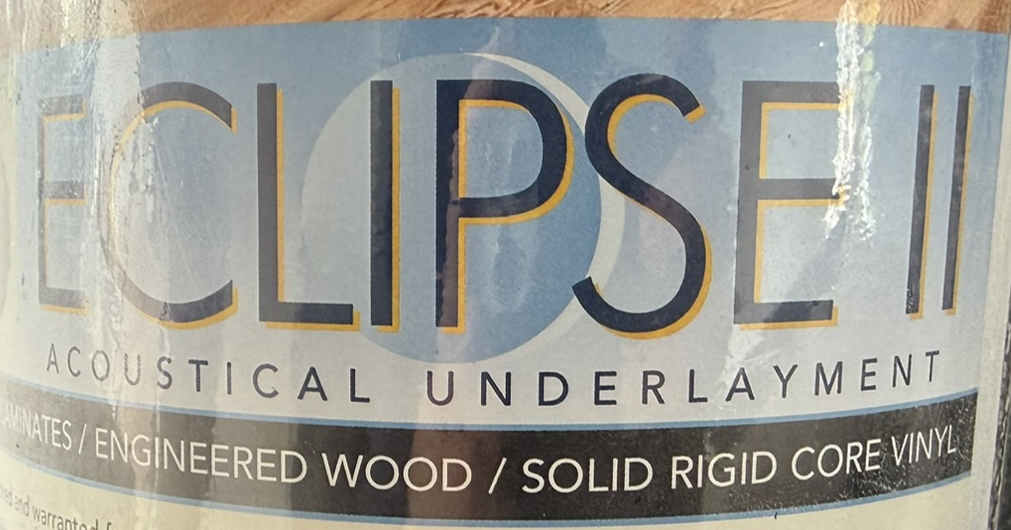

Eclipse II — Acoustical Underlayment product label

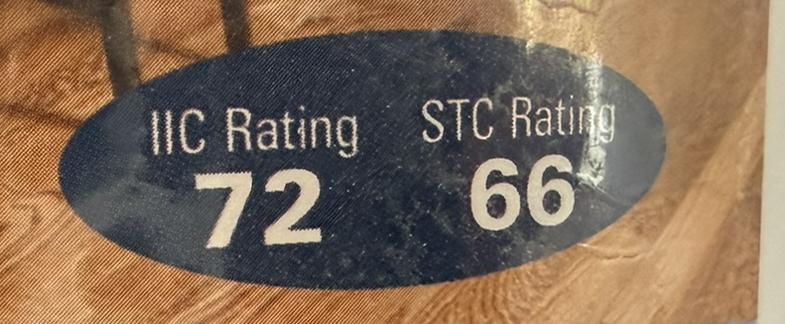

IIC 72 · STC 66 — lab-measured ratings on the roll

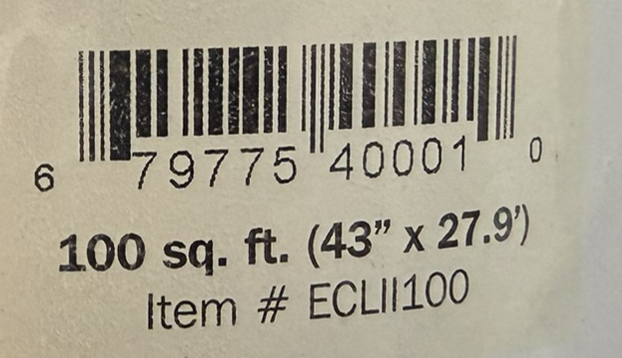

Item #ECLII100 · 100 sq. ft. (43″ × 27.9′)

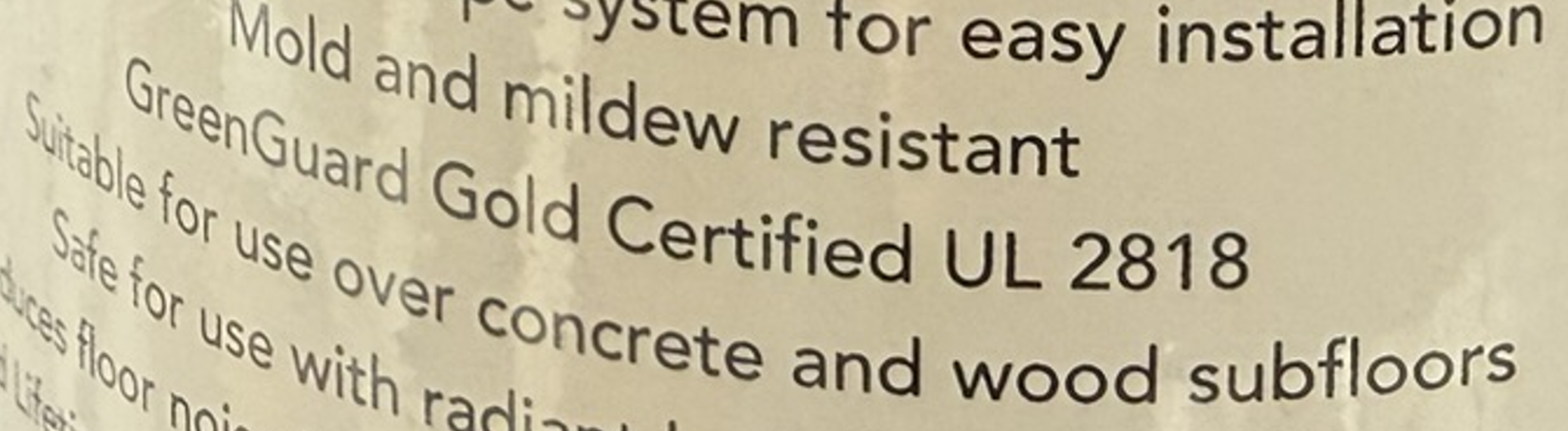

GreenGuard Gold Certified UL 2818 · concrete & wood subfloors
