CENSEO FIELD TEST REPORT
Continental House Condominium · Unit 606

Test Session #P26035A · May 18, 2026 · Jeanette Hesedahl, PE

Results Summary — All Three Tests

Table 1. Acoustical Test Results Summary
Report # Source Room Receiver Room Mockup Flooring Configuration Field AIIC
26035A-01 #606 Living #506 Living / Dining / Kitchen 5/8″ Oak Engineered Wood on 5mm GenieMat 51
26035A-02 #606 Living #506 Living / Dining / Kitchen 5/8″ Oak Engineered Wood on 6mm Quiet Board 49
26035A-03 #606 Den #506 Den 5/8″ Oak Engineered Wood on 3mm Quiet Walk 51
HOA requires FIIC 62 (new installation) or FIIC 55 (replacement). Flanking was not fully evaluated in any test — all AIIC values should be considered minimum values.
Test Report 26035A-01 — GenieMat 5mm
51
AIIC · Field Test Result
5/8″ Oak Engineered Wood on 5mm GenieMat Acoustical Underlayment
Flanking not fully evaluated — result is a minimum value.

Test Details

Conducted ByJeanette Hesedahl, PE, INCE Bd. Cert.
FirmCENSEO AV+Acoustics
Test DateMay 18, 2026
Report DateMay 19, 2026
Source Room#606 Living (unfurnished)
Receiver Room#506 Living / Dining / Kitchen
Mockup Area5′ × 5′
Receiver Room Size440 sq. ft.
Receiver Room Volume3,113 cu. ft.
StandardASTM E 1007-25 / E989-21

Test Assembly (top to bottom)

  1. Oak Engineered Wood · 5/8″ thick
  2. GenieMat Acoustical Underlayment · 5mm thick · recycled rubber
  3. Concrete Structural Floor · Thickness unknown
  4. Suspended Gypsum Board Ceiling · Thickness and construction unknown

Conformance Notes

¶ 11.8: Signal level > 5 dB above background — False at 1250 Hz (signal-to-noise ratio < 6 dB; SPL only provides estimate of lower limit).
¶ 10.4.4: Receiver room volume met minimum — Confirmed.
¶ 10.4.5: Receiver room absorption met preferred value — Confirmed.

Normalized Impact Sound Pressure by Frequency

Normalized Impact Sound Pressure Level by Frequency — 26035A-01
Freq (Hz)dBLevel
10058.7
12563.1
16068.7
20067.0
25064.8
31566.5
40064.7
50058.3
63051.9
80046.4
100042.9
125038.7 *
160041.9
200039.5
250036.2
315032.1

* 1250 Hz: signal-to-noise ratio < 6 dB — value is a lower-limit estimate only.

Darker bars (100–315 Hz) indicate the low-frequency range where thin underlayments perform weakest.

Test Figures

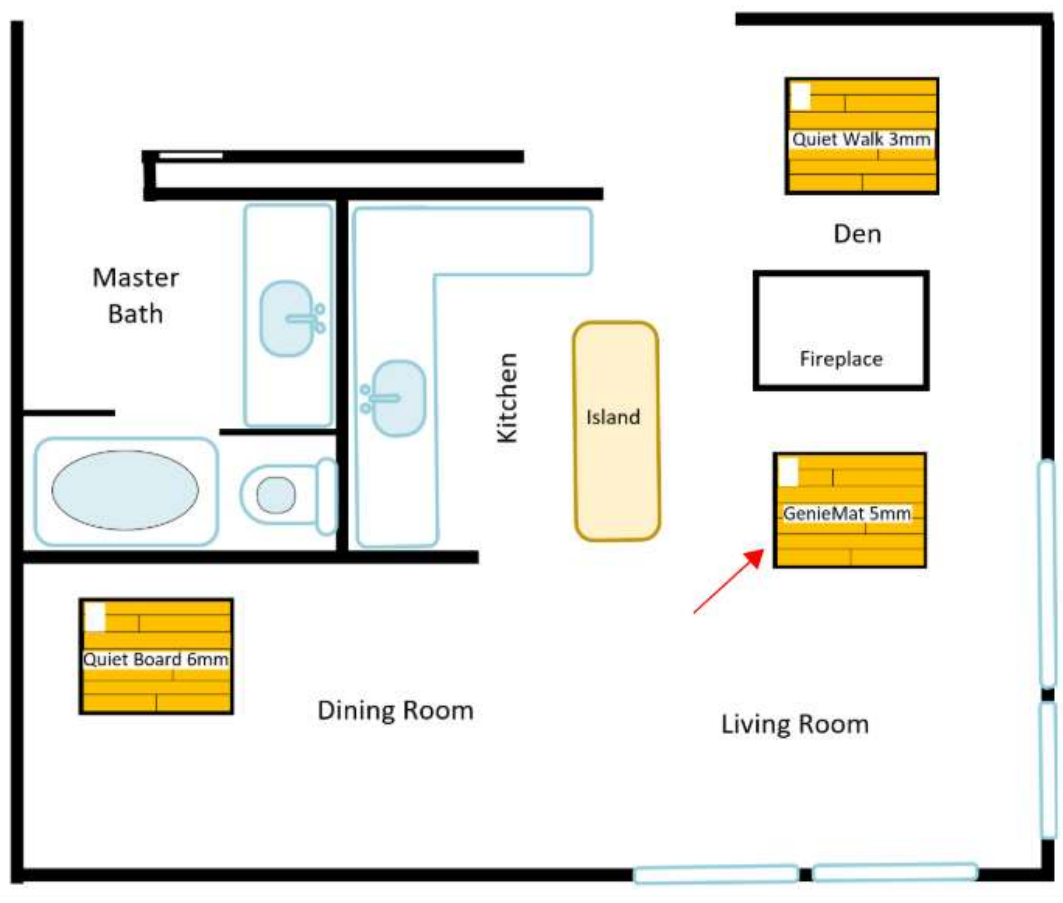

Figure 1 — Test 26035A-01
Figure 1

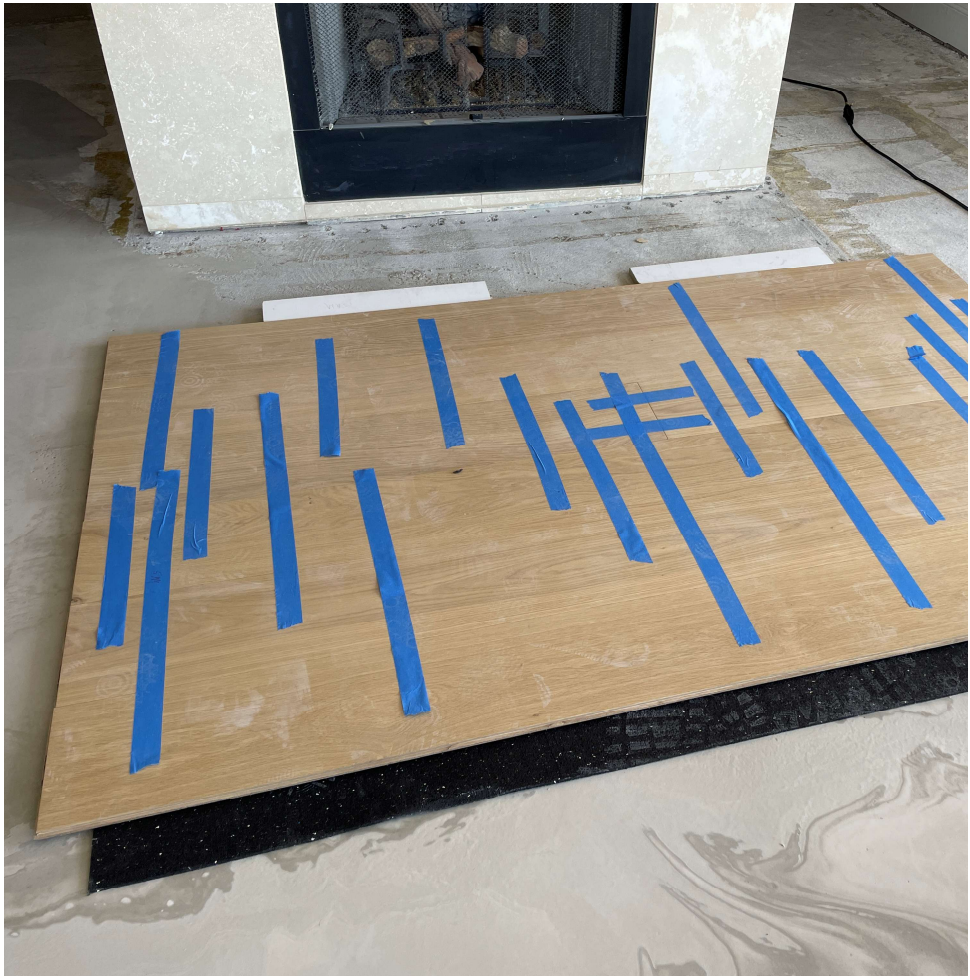

Figure 2 — Test 26035A-01
Figure 2
Figure 3
Test Report 26035A-02 — Quiet Board 6mm
49
AIIC · Field Test Result
5/8″ Oak Engineered Wood on 6mm Quiet Board Acoustical Underlayment
Flanking not fully evaluated — result is a minimum value.

Test Details

Conducted ByJeanette Hesedahl, PE, INCE Bd. Cert.
FirmCENSEO AV+Acoustics
Test DateMay 18, 2026
Report DateMay 19, 2026
Source Room#606 Living (unfurnished)
Receiver Room#506 Living / Dining / Kitchen
Mockup Area5′ × 5′
Receiver Room Size440 sq. ft.
Receiver Room Volume3,113 cu. ft.
StandardASTM E 1007-25 / E989-21

Test Assembly (top to bottom)

  1. Oak Engineered Wood · 5/8″ thick
  2. Quiet Board Acoustical Underlayment · 6mm thick · rigid fiberboard
  3. Concrete Structural Floor · Thickness unknown
  4. Suspended Gypsum Board Ceiling · Thickness and construction unknown

Conformance Notes

¶ 11.8: Signal level > 5 dB above background — Confirmed.
¶ 10.4.4: Receiver room volume met minimum — Confirmed.
¶ 10.4.5: Receiver room absorption met preferred value — Confirmed.

Normalized Impact Sound Pressure by Frequency

Normalized Impact Sound Pressure Level by Frequency — 26035A-02
Freq (Hz)dBLevel
10058.0
12562.9
16069.1
20071.4
25071.3
31566.6
40059.7
50054.6
63050.8
80048.9
100045.0
125050.0
160040.8
200040.9
250038.3
315032.2

Darker bars (100–315 Hz) indicate the low-frequency range where rigid fiberboard underlayments perform weakest.

Test Figures

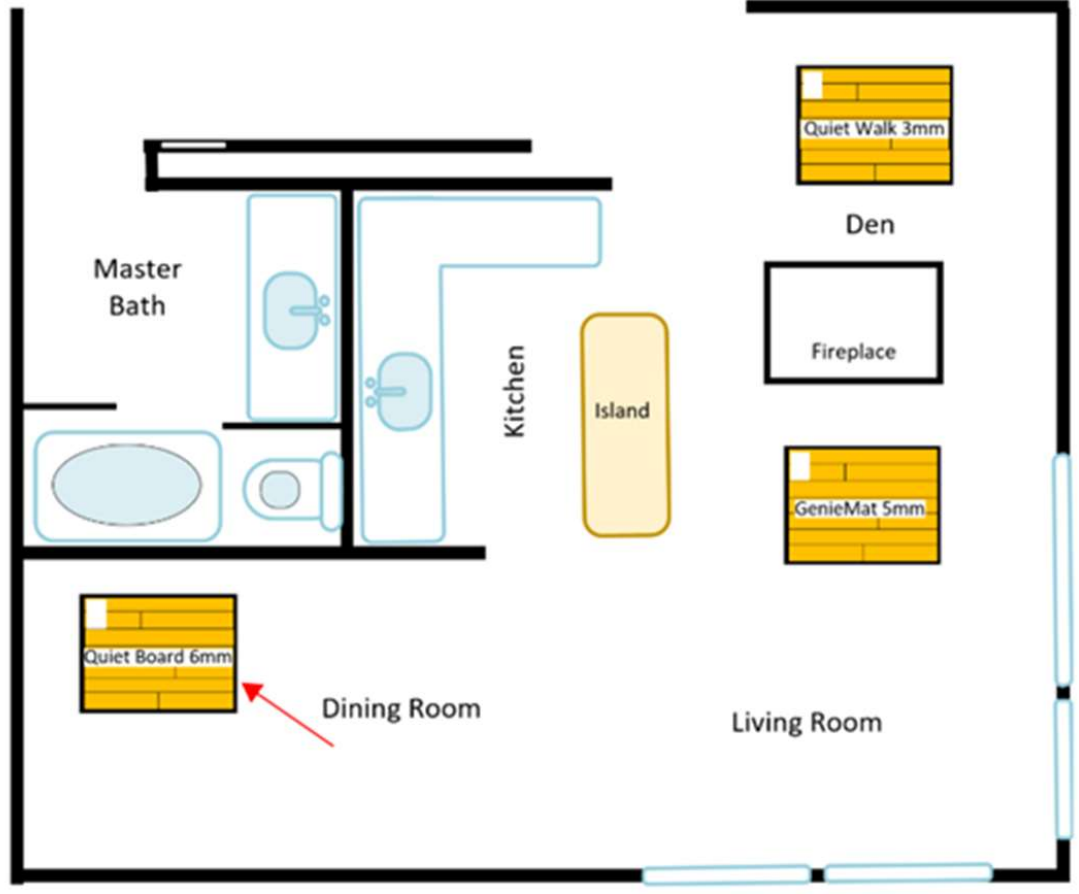

Figure 1 — Test 26035A-02
Figure 1

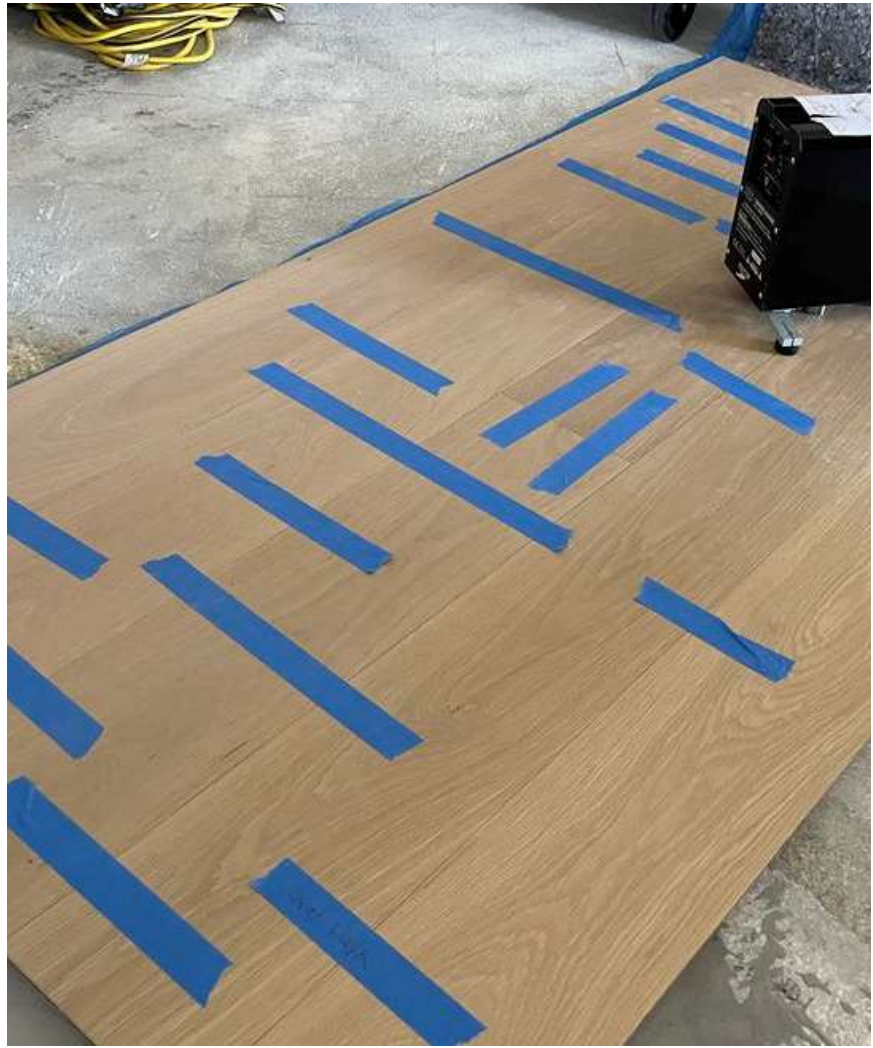

Figure 2 — Test 26035A-02
Figure 2
Figure 3
Test Report 26035A-03 — Quiet Walk 3mm
51
AIIC · Field Test Result
5/8″ Oak Engineered Wood on 3mm Quiet Walk Acoustical Underlayment
Flanking not fully evaluated — result is a minimum value.
Note: Receiver room volume (660 cu. ft.) is below the ASTM minimum — result may not be fully reliable.

Test Details

Conducted ByJeanette Hesedahl, PE, INCE Bd. Cert.
FirmCENSEO AV+Acoustics
Test DateMay 18, 2026
Report DateMay 19, 2026
Source Room#606 Den (unfurnished)
Receiver Room#506 Den
Mockup Area5′ × 5′
Receiver Room Size86 sq. ft.
Receiver Room Volume660 cu. ft.
StandardASTM E 1007-25 / E989-21

Test Assembly (top to bottom)

  1. Oak Engineered Wood · 5/8″ thick
  2. Quiet Walk Acoustical Underlayment · 3mm thick · recycled fiber
  3. Concrete Structural Floor · Thickness unknown
  4. Suspended Gypsum Board Ceiling · Thickness and construction unknown

Conformance Notes

¶ 11.8: Signal level > 5 dB above background — Confirmed.
¶ 10.4.4: Receiver room volume met minimum — False. Receiver room volume (660 cu. ft.) is less than the required 1,412 cu. ft. (40 cu. meters). Result may not be reliable.
¶ 10.4.5: Receiver room absorption met preferred value — Confirmed.

This test does not conform fully to the requirements of ASTM E336-25. The receiver room volume is too low for a reliable measurement. The AIIC 51 result should be interpreted with caution.

Normalized Impact Sound Pressure by Frequency

Normalized Impact Sound Pressure Level by Frequency — 26035A-03
Freq (Hz)dBLevel
10056.6
12561.5
16064.7
20068.5
25068.1
31565.4
40051.9
50041.6
63036.6
80034.9
100034.2
125032.7
160029.8
200030.9
250028.0
315022.8

Darker bars (100–315 Hz) indicate the low-frequency range where thin fiber underlayments perform weakest.

Test Figures

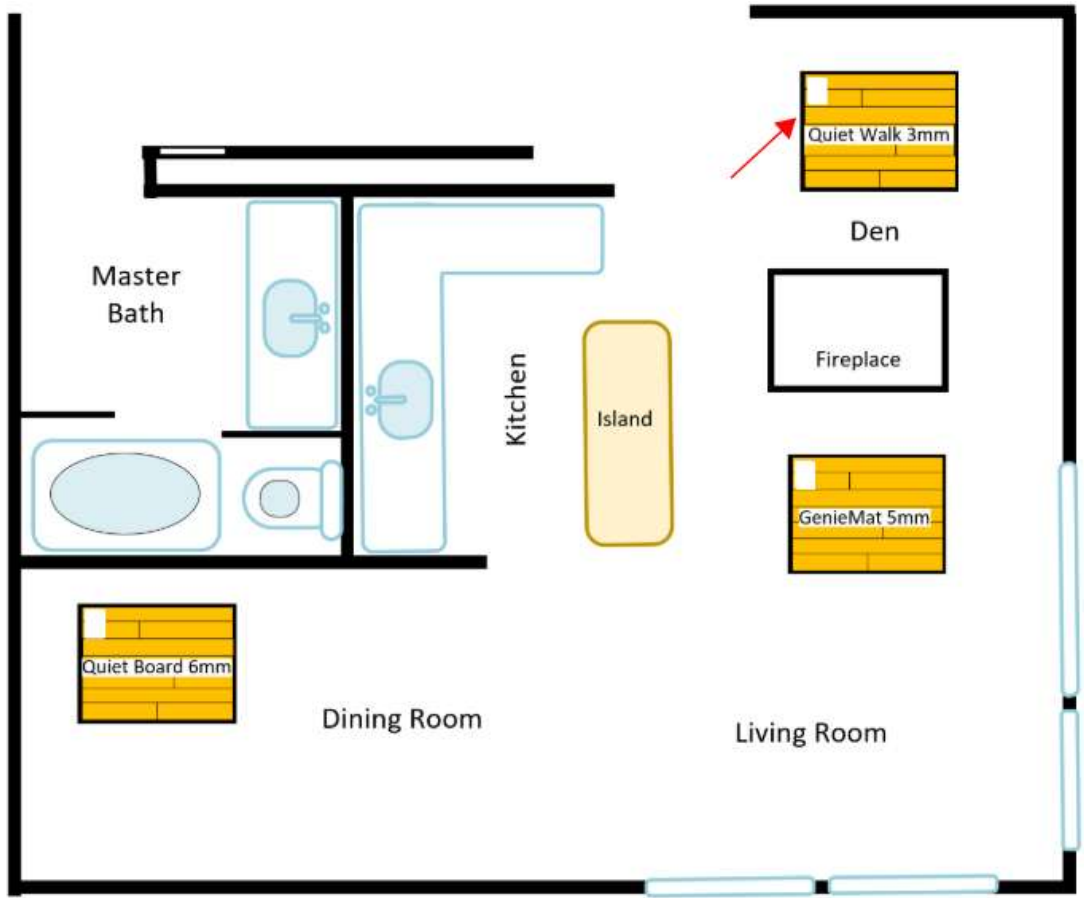

Figure 1 — Test 26035A-03
Figure 1

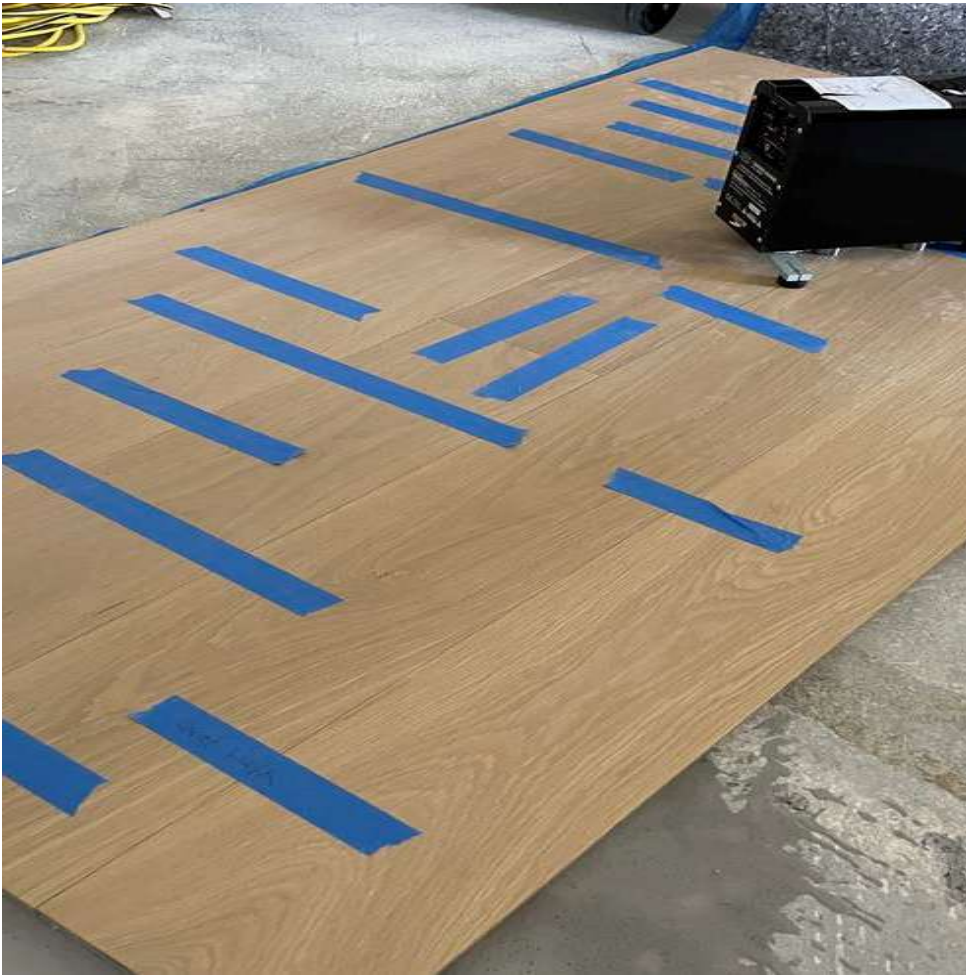

Figure 2 — Test 26035A-03
Figure 2
Figure 3
CENSEO AV+Acoustics · Test Session #P26035A · Continental House Condominiums
Conducted for Irene Ferrante · 100 Ward Street, Unit 606, Seattle WA 98109
Report Date: May 19, 2026
